Ring Gear Pattern - Web reading and interpreting gear patterns can be very confusing if they aren't obvious patterns. Web in general, pattern movements can be summarized this way: Web the toe of the gear tooth is the portion of the tooth surface at the end towards the center. Web proper ring gear to pinion gear contact pattern is critical for quiet and trouble free gear set operation. Web here's how to achieve the best ring & pinion contact pattern , every time, in just 3 simple steps!reading contact patterns can be daunting when looking at th. Web check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. Moving the pinion gear closer to the carrier will move the drive side pattern closer to the flank and slightly toward the. Web gear tooth patterns are harbingers… they can foretell whether your ring and pinion gear set is going to live a long and prosperous life or if it’s doomed to an. Begin by setting proper pinion bearing preload, total turning preload, and ring. This video was created to give people a basic understanding of.

This video was created to give people a basic understanding of. This chart illustrates different patterns and adjustments. Web the toe of the gear tooth is the portion of the tooth surface at the end towards the center. Web reading and interpreting gear patterns can be very confusing if they aren't obvious patterns. Web check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. Web proper ring gear to pinion gear contact pattern is critical for quiet and trouble free gear set operation. Web gear tooth patterns are harbingers… they can foretell whether your ring and pinion gear set is going to live a long and prosperous life or if it’s doomed to an. Web here's how to achieve the best ring & pinion contact pattern , every time, in just 3 simple steps!reading contact patterns can be daunting when looking at th. Web in general, pattern movements can be summarized this way: The heel of the gear tooth is the portion of the tooth surface at the outer end.

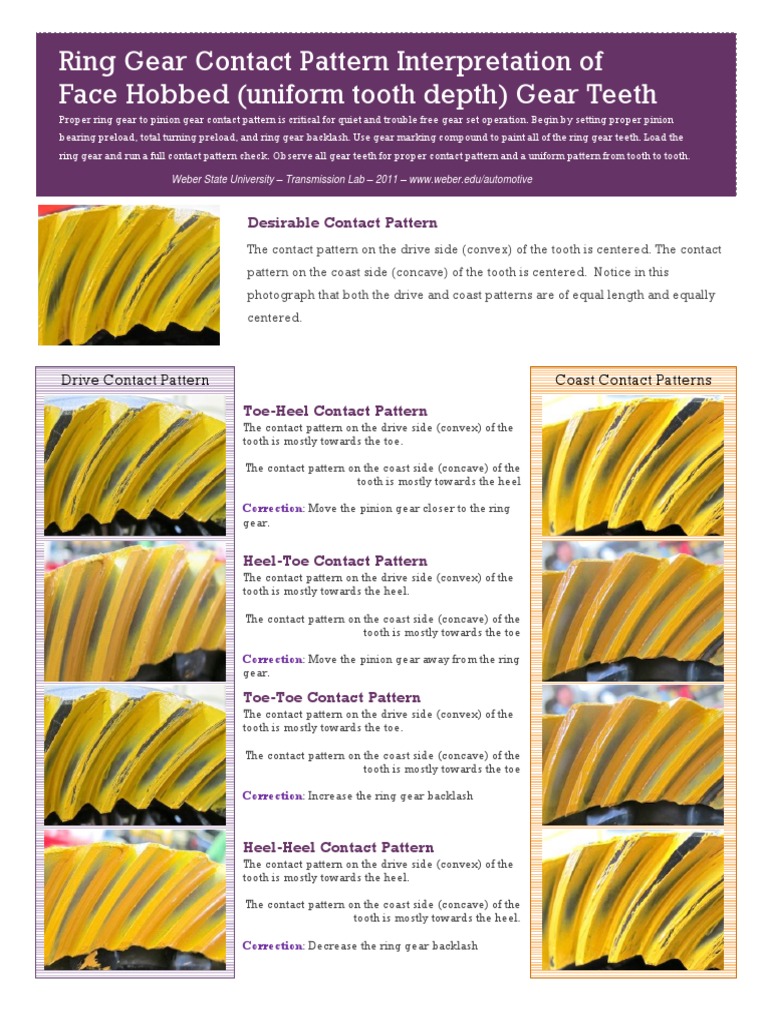

Weber Ring Gear Contact Pattern Interpretation Gear Tooth

Web ring and pinion gear pattern is one of the most valuable tools for determining if a differential is properly set up. One is manufactured by face hobbing, while the other one is manufactured by face. Web reading and interpreting gear patterns can be very confusing if they aren't obvious patterns. Web gear tooth patterns are harbingers… they can foretell.

Ring And Pinion Patterns

The heel of the gear tooth is the portion of the tooth surface at the outer end. Web the toe of the gear tooth is the portion of the tooth surface at the end towards the center. Web in general, pattern movements can be summarized this way: Web ring and pinion gear pattern is one of the most valuable tools.

Technical Need Advice from the Gear Setup Experts; Ring Gear Pattern

This video was created to give people a basic understanding of. Web ring and pinion gear pattern is one of the most valuable tools for determining if a differential is properly set up. Web when setting up the positioning of a ring and pinion in any rear end, there are only two settings that need to be done/measured correctly to.

Technical Need Advice from the Gear Setup Experts; Ring Gear Pattern

This chart illustrates different patterns and adjustments. Moving the pinion gear closer to the carrier will move the drive side pattern closer to the flank and slightly toward the. One is manufactured by face hobbing, while the other one is manufactured by face. Web gear tooth patterns are harbingers… they can foretell whether your ring and pinion gear set is.

How To Create & Read Ring Gear Patterns

This video was created to give people a basic understanding of. This chart illustrates different patterns and adjustments. Web the toe of the gear tooth is the portion of the tooth surface at the end towards the center. Begin by setting proper pinion bearing preload, total turning preload, and ring. Web ring and pinion gear pattern is one of the.

Ring Gear Pattern Chart

Begin by setting proper pinion bearing preload, total turning preload, and ring. The images below illustrate both acceptable and. Web check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. Web when setting up the positioning of a ring and pinion in any rear end, there are only two settings that need.

Technical Need Advice from the Gear Setup Experts; Ring Gear Pattern

Moving the pinion gear closer to the carrier will move the drive side pattern closer to the flank and slightly toward the. Web gear tooth patterns are harbingers… they can foretell whether your ring and pinion gear set is going to live a long and prosperous life or if it’s doomed to an. This video was created to give people.

How to Read and Interpret Gear Patterns (Ring and Pinion) YouTube

The images below illustrate both acceptable and. Web proper ring gear to pinion gear contact pattern is critical for quiet and trouble free gear set operation. Web here's how to achieve the best ring & pinion contact pattern , every time, in just 3 simple steps!reading contact patterns can be daunting when looking at th. This video was created to.

Figure 83. Proper piniontodifferential ring gear tooth contact pattern.

The images below illustrate both acceptable and. The heel of the gear tooth is the portion of the tooth surface at the outer end. Web when setting up the positioning of a ring and pinion in any rear end, there are only two settings that need to be done/measured correctly to ensure proper gear. Web the toe of the gear.

Ring Pinion Pattern Patterns Gallery

Web check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. The images below illustrate both acceptable and. Web reading and interpreting gear patterns can be very confusing if they aren't obvious patterns. The heel of the gear tooth is the portion of the tooth surface at the outer end. Web the.

This Video Was Created To Give People A Basic Understanding Of.

Web the toe of the gear tooth is the portion of the tooth surface at the end towards the center. Web when setting up the positioning of a ring and pinion in any rear end, there are only two settings that need to be done/measured correctly to ensure proper gear. Web here's how to achieve the best ring & pinion contact pattern , every time, in just 3 simple steps!reading contact patterns can be daunting when looking at th. Web in general, pattern movements can be summarized this way:

Web Gear Tooth Patterns Are Harbingers… They Can Foretell Whether Your Ring And Pinion Gear Set Is Going To Live A Long And Prosperous Life Or If It’s Doomed To An.

Begin by setting proper pinion bearing preload, total turning preload, and ring. Web proper ring gear to pinion gear contact pattern is critical for quiet and trouble free gear set operation. Web there are two types of gears which are determined by the machining method. The heel of the gear tooth is the portion of the tooth surface at the outer end.

Web Ring And Pinion Gear Pattern Is One Of The Most Valuable Tools For Determining If A Differential Is Properly Set Up.

Web reading and interpreting gear patterns can be very confusing if they aren't obvious patterns. The images below illustrate both acceptable and. One is manufactured by face hobbing, while the other one is manufactured by face. Moving the pinion gear closer to the carrier will move the drive side pattern closer to the flank and slightly toward the.
